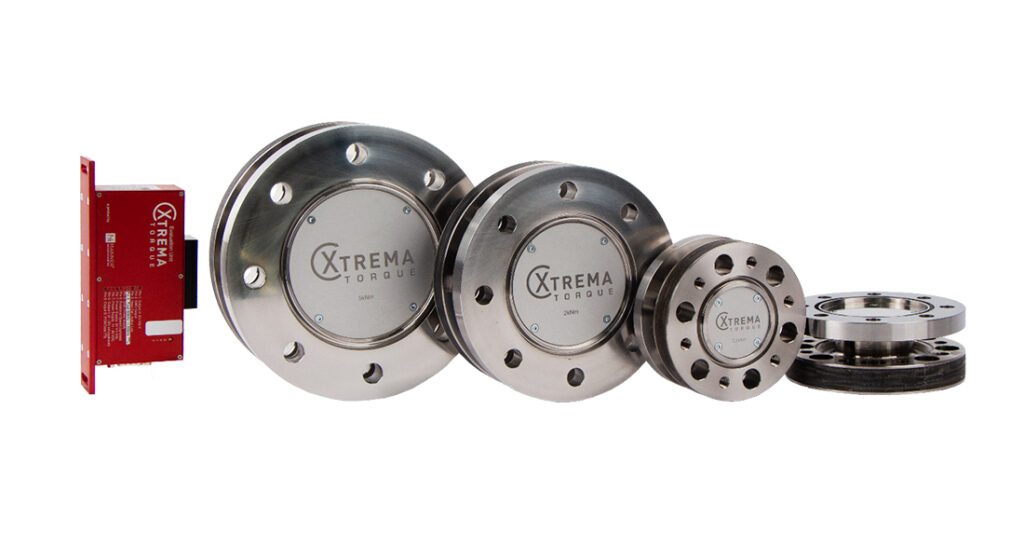

MANNER Highspeed Torque Flange

MANNER Highspeed Torque Flange is an inductive, fully digital torque measurement flange engineered for high precision and extreme overload resistance. Designed for harsh environments with configurable stator options and digital/analog interfaces.

Downloads

PDF FILE1

PDF FILE2

Highspeed Torque Flange (0.5 kN·m to 20 kN·m)

Built for demanding test bench applications requiring high rotational speeds and robust installation tolerances. The inductive technology enables large rotor-to-stator distances to reduce collision risk and improves transmission quality even with inaccurate installation.

Key Benefits

Torque range: 0.5 kN·m to 20 kN·m
Rated speeds up to 65,000 rpm
Accuracy class 0.05 (optional 0.02)
Wide temperature range: −40 °C to 160 °C
Up to 10 kHz (−3 dB) bandwidth
DAkkS calibrations available
Customized mechanical interface

Design & Robustness

400% limit torque of nominal torque without harm
800% breaking torque of nominal torque
High bending tolerance

Flexible Stator Configuration

Nominal radial distance 10 mm (optional up to 20 mm)
Axial tolerance ±2 mm (optional up to ±20 mm)

Outputs & Interfaces

Classic analog outputs (voltage, current, frequency)
Digital outputs via EtherCAT, CAN, Ethernet, WLAN
Health monitoring interface
Integrated pick-up version or cabinet-mounted evaluation units

Technical Data

Torque range	0.5 kN·m to 20 kN·m
Rated speed	Up to 65,000 rpm
Accuracy class	0.05 (optional 0.02)
Bandwidth	Up to 10 kHz (−3 dB)
Temperature range	−40 °C to 160 °C
Environment	Oil mist/grease; Water IP67; Saltwater; ATEX
