• Bidirectional Output, Differential Input
• Ultra low noise output
• Up to 50 kHz bandwidth
• 4-20 mA Output
• Bridge Excitation: 5 or 10 VDC (DIP Switch)
• Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch)
• 256 Selectable Shunt Combinations
• Externally Accessible Shunt Cal Activation Button
• Internal Span and Offset Potentiometers
• Sensor Polarity Reversal DIP Switch
• Zero Shift DIP Switch
• CE approval and RoHS compliant

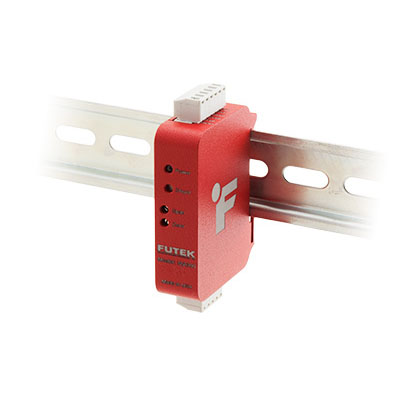

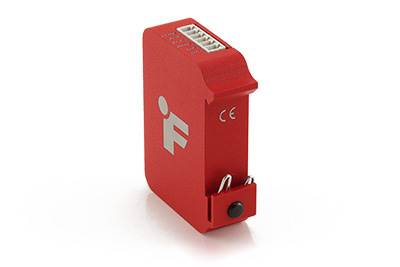

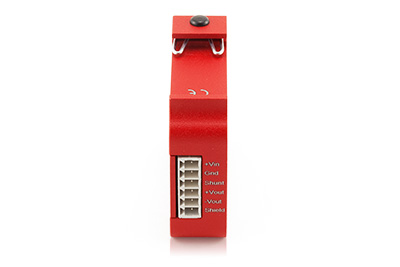

The IAA Family is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. Our fastest amplifier, the IAA300 features up to 50 kHz bandwidth. The new model combines precision and ease of integration. The IAA300 Differential Strain Gauge Amplifier features an aluminum housing with an integrated DIN clip designed for industrial environment applications.
Product Highlights
Bidirectional Output, Differential Input
