TelMA Torque – Shaft Torque Element (Industry 4.0 / Machine Monitoring)

TelMA Torque is a patented, stamp-format torque acquisition element for inductive, maintenance-free measurement on rotating shafts. Designed for Industry 4.0, machine monitoring and predictive maintenance, with quick installation via micro-welding and optional bending-moment compensation using two sensor elements.

Downloads

PDF FILE

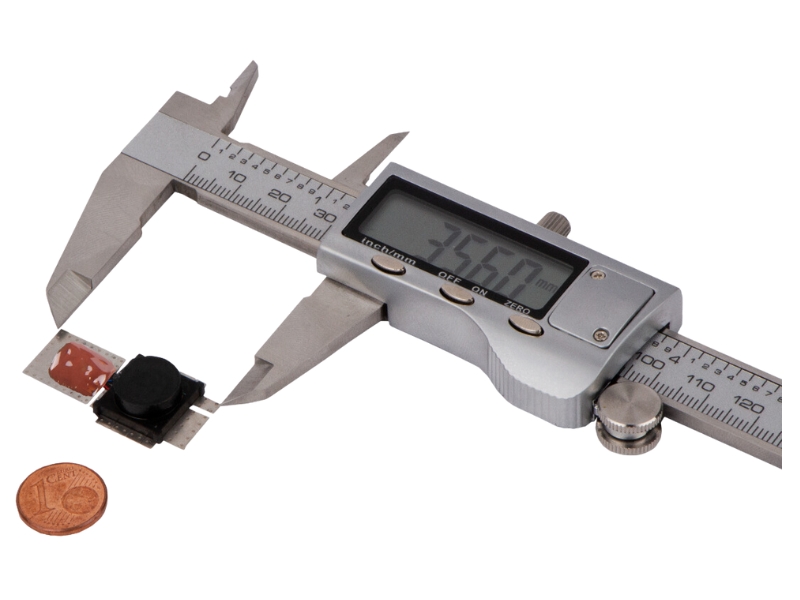

TelMA Torque – Patented torque acquisition in stamp format

TelMA Torque enables dynamic torque measurement on rotating shafts using proven strain gauge technology in an ultra-compact “stamp format”. The sensor element integrates both the sensing function and the telemetry interface for contactless signal transmission and battery-free operation.

What it measures

Torque
Speed
Temperature

Key Benefits

Miniaturized dynamic torque measurement on rotating shafts
Compact torque element with integrated sensor and telemetry interface
No soldering or gluing process required
Series-friendly assembly via micro-welding (without affecting shaft strength)
Integrated rotation speed measurement
Optional bending moment compensation using 2 sensor elements
Analog or digital outputs with contactless transmission
Completely maintenance-free operation (battery-free)
Configurable measurement range via software (final configuration step after installation)

Typical Use Cases

Machine monitoring, early diagnosis & predictive maintenance
Process optimization (control loop integration)
Detection of torsional dynamics and vibration-related failures
Performance and efficiency analysis

Technical Data

Element type	Shaft TelMA Torque element (1 or 2 elements possible)
Diameter range	Customer-specific, approx. 30 mm to 400 mm
Outputs	Analog or digital; contactless signal transmission
Stator supply	9–30 V
Stator outputs	Voltage 2.5 ± 2.25 V; Current 4–20 mA
Interface	CAN (direct signal transmission)
OEM version (IP40)	60 × 51 × 15.5 mm
Industrial version (IP67)	131.8 × 64 × 34 mm
