• USB 2.0 Communication Link
• 24 bits internal resolution
• Up to 19 bits (±260,000 counts) noise free resolution
• Up to 15,000 sample per second selectable rate
• High accuracy (±0.005%)
• Low non-linearity (±0.005%)
• USB Output
• Precision 4.6 VDC Excitation
• Output for encoder purpose
• Speed/Angle/Power Measurement
• CE approval and RoHS compliant

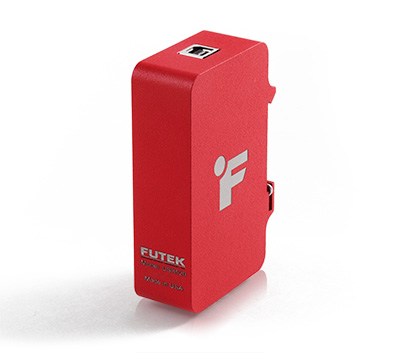

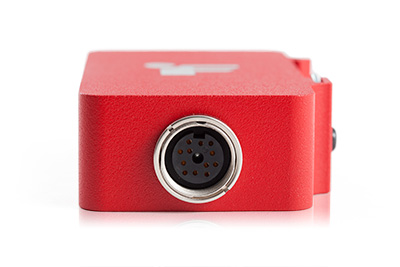

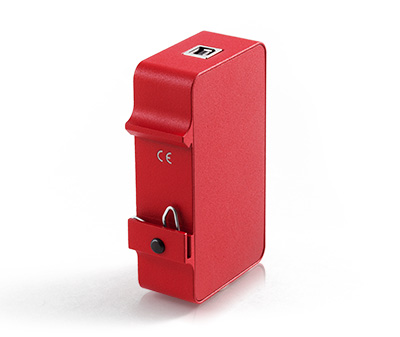

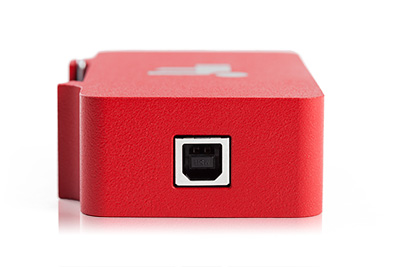

The new USB530 – External USB Kit (Amplified/Non Amplified + Encoder Input) module eliminates the need for power supply and display equipment. The module is supplied by PC power through a USB Cable, providing excitation voltage for the sensor. The analog output voltage of the sensor is then digitized and processed by a microprocessor using the integrated high resolution (24 bits) analogue to digital converter (ADC). The on-board USB device allows the microprocessor to communicate with the PC by means of the USB link. The USB integration works hand in hand with SENSIT Test and Measurement software, which allows users to monitor the actual output of the sensor in real time. This is calculated based on the calibration values stored inside the on-board memory. The easy plug and play gives you the power to monitor the sensor output and enjoy measurement that is less affected by noise, temperature variation and excitation. The USB520 product is designed and manufactured by FUTEK in the USA.
