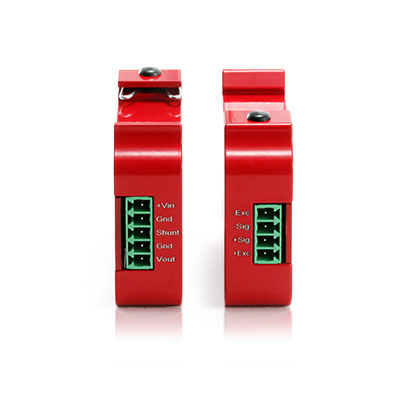

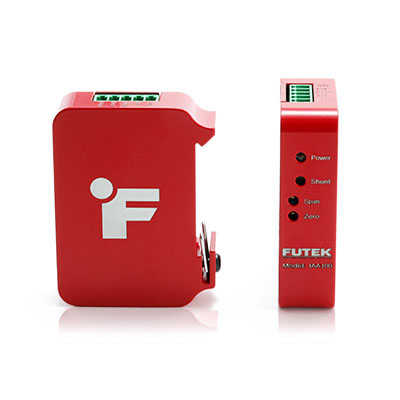

IAA100
By FUTEK
• Bipolar Output, Differential Input
• ±5 or ±10 VDC Outputs
• Selectable 1 KHz,10 KHz, 25 KHz Bandwidth
• Bridge Excitation: 5 or 10 VDC (DIP Switch)
• Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch)
• Internal Span and Offset Potentiometers
• Sensor Polarity Reversal DIP Switch
• Zero Shift DIP Switch
• CE approval and RoHS compliant
Description
The IAA Family is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. The new model combines precision and ease of integration with a 0.005% total error. Both IAA100 (voltage amplifier) and IAA200 (current transmitter) feature an aluminum housing with an integrated DIN clip designed for industrial environment applications.
Product Highlights
- Bipolar Output, Differential Input
- ±5 or ±10 VDC Outputs
- Selectable 1 KHz,10 KHz, 25 KHz Bandwidth
- Bridge Excitation: 5 or 10 VDC (DIP Switch)
- Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch)
- 256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch)
- Externally Accessible Shunt Cal Activation Button
- Digitally Controlled Remote Shunt
- Internal Span and Offset Potentiometers
- Sensor Polarity Reversal DIP Switch
- Zero Shift DIP Switch
- CE approval and RoHS compliant
