ZigBee Inclinometer

By Vigor Technology

• Vigor Technology ZigBee Inclinometer
• Performs IEEE802.15.4, frequency 2.4G ISM
• Support star networks and peer-to-peer network, more security
• Radio frequency passed by CE, FCC and other international certifications
• Low power consumption, support 100m or 1km distance
• Patent tilt measurement technology, to achieve true high accuracy

Send me a qoutation


  • Product info

    Zigbee inclinometer is based on Vigor’s patent tilt measurement technology with Zigbee wireless module which with IEEE802.15.4 standard, to meet wild, unattended, hazardous and confined space applications for remote monitoring and maintenance requirements.

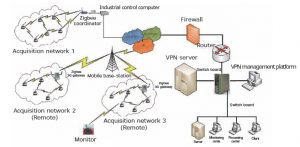

    Zigbee inclinometer also has a highly flexible wireless network capability and strong tilt measurement capability:
    √ ±0.02%FS linearity
    √ ±0.005°Offset, realize higher accuracy for platform leveling
    √ Combine with gyro module, realize static/dynamic angle measuring
    √ Combine with vibration module, realize FFT computations in-time, output vibration frequency and amplitude data directly, eliminate the influence of environment vibration
    √ Further confirmed that offset, repeatability, hysteresis, turn on repeatability etc. parameters which are important influence factors to unit total performance evaluation
    √ Internal enhanced advanced intelligent algorithms drastically reduce cross-axis error, upgrades real tilt angle measuring accuracy, abandoned the traditional incomplete understanding for tilt angle measurement precision concept
    √ Greatly reduce measuring errors when the real tilt direction not consistent for unit’s sensitive axis
    √ Performs with short-circuit, transient voltage, transposition protection to adapt to industry environment

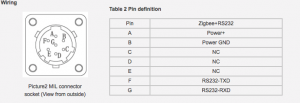

  • Size & Wiring


    Skärmavbild 2016-06-15 kl. 10.52.18


  • Ordering


    For example, if order a dual-axis Zigbee inclinometer, with range ±15°, room temperature accuracy ±0.02°, -20~60℃ accuracy ±0.02°, output Zigbee interface, 2 meters cable with plug, the model should be chosen as SST302-15-G11-00 -00-C1-D3(2m)
    Meanwhile some options:(see table 4)
    Zigbee monitor- order number SST003-04-08
    Zigbee-USB converter-order number SST003-05-19
    Zigbee wireless gateway-order number SST003-05-2

    Table 3 Accessories
    Item Order Code Accessories name Function
    F1 GPS module Positioning accuracy 2.5m CEP; 2.0m @ SBAS
    Local gravity acceleration automatic revision
    Time pulse accuracy: 30ns RMS, Original data refresh rate: 4Hz
    Speed accuracy: 0.1m/s,Receiver type:GPS L1 band,C/A code;
    Higher positioning accuracy GPS available
    F3 Compass module Plane compass technology
    Range: 0~360°
    Accuracy: <±1.0°RMS, Resolution: 0.01°
    Hard-iron compensation circuit
    Hgher accuracy or 3D compass module available
    F4 Gyro module ±100/250/400°/s, X/Y/Z axis dynamic angular rate
    In-run bias: ±0.02°/s, Non-linearity: 0.1%FS
    Bandwidth: 50Hz,Noise density:0.02°/s/√Hz
    Higher accuracy gyro module available
    F5 Vibration module Three-axis vibration detection, frequency response≤5 kHz
    Range: 0g~±1g/ ±5g/ ±10g/ ±20g, adjustable
    Sampling(real-time): 20.48 kSPS
    Filter programmable, 11pcs set points
    FFT, 512-point, real valued, all three-axis(x, y, z)
    Storage: 14 FFT records on all three-axis(x, y, z)
    Alarm programmable, 6 spectrums
    D1 Temperature drift Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°
    D2 Temperature drift Temperature compensation range 0~60℃, accuracy ±0.01°@>±30°
    D3 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@≤±30°
    D4 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@>±30°
    D5 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@≤±30°
    D6 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@>±30°
    D7 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@≤±30°
    D8 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@>±30°
    D9 Temperature drift Temperature compensation range-40~85℃, accuracy ±0.05°@≤±30°
    D10 Temperature drift Temperature compensation range -40~85℃, accuracy ±0.05°@>±30°
    Table 4 Options
    Item P/N Option name Function
    Monitor SST003-04-08 Zigbee monitor Built-in lithium battery with 8 hours supply, single/dual
    axis, sound/light alarm, alarm point can be set up, 200m distance
    Network access facility SST003-05-15 LAN/WAN converter According to ITU-T G-703 protocol and 10 Base-T
    comply with ITU-T G-735 and TU-T G-823
    2.048Mbps rate, 2km distance,1500 V isolation
    Ethernet port rate 10,100 Mbps,
    Ethernet full/half-duplex mode, support VLAN
    MAC address filter: built in 10000 MAC ID
    SST003-05-19 Zigbee-USB converter USB interface, support hot plug and port power supply
    Online configuration function, support sleep mode Support
    128 bit AES Wireless data encryption
    Support 65536 nodes
    Compatible IEEE 802.15.4/ZigBee protocol
    2.4 GHz ISM and 780M WPAN frequency range
    With 2dBi antenna, visual distance reach 300-1000 m
    Support point-to-point, star, tree and Mesh networks
    SST003-05-20 Zigbee wireless
    Visual distance reach 2000m
    Based on Web management, easy-to-use
    Support star, tree, chain and MESH network
    Up to 4-channel ZigBee
    Provide RS232, wired Ethernet, Wi-Fi and GPRS access
    Own RTC function, automatically synchronize
    Automatic CSMA-CA /address filtering/frame
    retransmission/confirm functions
    Safety certification, AES128 data encryption
    Power SST003-09-02 Portable battery
    Output 24VDC,Continuous work 24 hours,IP65,rechargeable
    SST003-09-03 Complementary
    power combined with
    solar and wind energy
    Solar and wind energy, Day & night working
    Wind input power 0.6KW; solar input power 0.3KW
    Battery rated voltage 24V;
    AC output power 1KW, 220VAC
    DC output: 24VDC@1A
    Installation SST003-01-01 Magnetic base 50kg suction, permanent magnet, stainless steel materials
    SST003-01-04 Adjustable base with
    micrometer screw
    Three points adjustment, resolution 0.001mm, stainless
    steel material
