WIPER BLADE R & D

By XSENSOR

• XSENSOR
• Wiper Blade System
• Measures linear force
• 16-bit resolution

Send me a qoutation

Description

With XSENSOR® technology the pressure profile from the blade on a windshield can be used to influence the overall design and verify performance.

Skärmavbild 2016-06-23 kl. 09.51.14

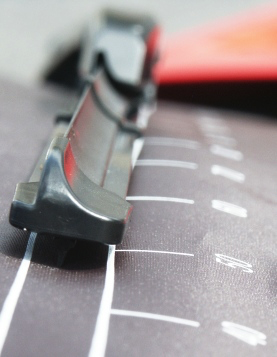

XSENSOR’s X3 Wiper Blade System is a design and quality assurance tool that measures a wiper blade’s linear force as it is applied on a windshield. The wiper blade sensor is a consistent, reliable, and repeatable measurement tool used to assess wiper blade interface pressure distribution.

X3 Wiper Blade Sensor Packages

X3 Wiper Blade packages include 16-bit resolution electronics as well as XSENSOR’s X3 PRO v7.0 software.
Two X3 Wiper Blade Sensors are available:
• The PX100:10.64.02 has 640 sensing points and a pressure range of 0.07 to 2.67N/cm²
• The PX100:10.160.05 has 1600 sensing points and a pressure range of 0.07 to 2.67N/cm²
