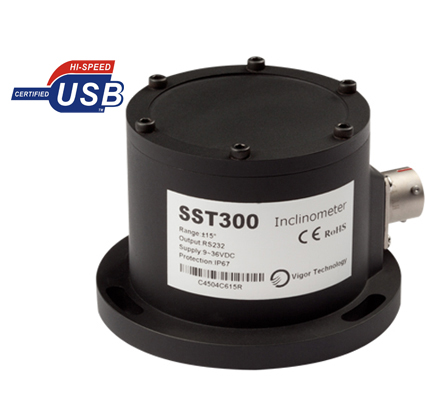

USB Inclinometer

By Vigor Technology

• Vigor Technology USB Inclinometer
• Reference with USB2.0 protocol
• P2P and compatible with any USB port
• USB bus power supply, no need external battery
• Patent tilt measuring technical, real high accuracy
• Provide multi-function PC software, easy to debug & acquire
• Intelligent AIS & data transmission control system.
• Support 1Mbp/s(optional 12Mb/s) transmission speed
• ±8KV electrostatic interface protection and anti-electromagction netism interference design
• Support Windows98/Windows2000/ Windows XP/ Vista/Win7/Linux system

Send me a qoutation

Description

  • Product info

    USB inclinometer is based on Vigor patent tilt measurement technology and combined with USB module, can be broadly used in various industry& lab test applications. Not only meet critical null repeatability, also suite to static/dynamic leveling with different modules in platform leveling application. With real high combined accuracy, this unit performs high accuracy data of any angle point while testing.
    USB inclinometer compatible with USB2.0 standard, with data transmission control system. It uses USB bus for power supply but not the external battery. It adopts P2P working mode, with USB driver software, meanwhile Vigor provides much PC software (include driver software) for function setting, data acquisition & record.
    USB inclinometer has strong measuring ability:
    √ Combine with gyro module, realize static/dynamic angle measuring for low/rapid platform leveling
    √ Combine with vibration module, realize FFT computations in-time, output vibration frequency and amplitude data directly, eliminate the influence of environment vibration
    √ Combine with GPS module, realize data synchronization data acquisition and local position data in different installation places
    √ Further confirmed that offset, repeatability, hysteresis, turn on repeatability etc. parameters which are important influence factors to unit total performance evaluation
    √ Internal enhanced advanced intelligent algorithms drastically reduce cross-axis sensitivity, Upgrade real tilt angle measuring accuracy, abandoned the traditional incomplete understanding for tilt angle measurement precision concept
    √ Greatly reduce measuring errors when the real tilt direction not consistent for unit’s actual sensitive axis
    √ Short-circuit, transient voltage and transposition protection to adapt to industry environment
    √ User can set zero point, baud rate, local gravitational acceleration value, zero calibration, vibration suppression filter coefficients, ID address, refresh rate, etc.
    C11 is USB2.0 standard cable, matched with standard USB port to get power and transmit data, max. transmission distance 15m.20130510003618860

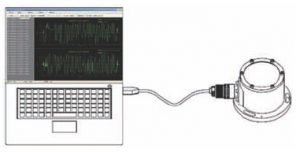

    Picture 1 PC & USB Connection
    (The dynamic library and source code disk will be enclosed with standard USB inclinometer, as well as 2 meter double shield USB wire.)

  • Size & Wiring

    20130509230855577

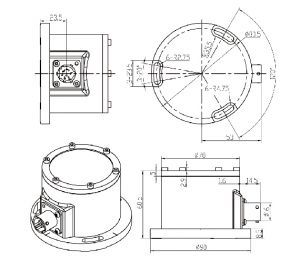

    Picture 2 Housing with MIL class connector

    20130510003602338

  • Ordering

    ´òÓ¡

    For example, if order a dual-axis USB inclinometer, with range ±15°, the accuracy at room temperature is ±0.02°, same the range of -20~60℃, USB output, 2m shield cable, anti-vibration module, the model should be SST302-15-G10-F5 -00-C11-D3(2m, enclosed referred disk (dynamic library, source code and instruction)
    Meanwhile some optional accessories (See table 4)
    PC application software——order number SST003-04-09
    Magnetic base——order number SST003-01-01

    Table 3 Accessories
    Item Order Code Accessories name Function
    Functional
    model
    (built-in)
    F1 GPS module Positioning accuracy 2.5m CEP; 2.0m @ SBAS
    Local gravity acceleration automatic revision
    Time pulse accuracy: 30ns RMS, Original data refresh rate: 4Hz
    Speed accuracy: 0.1m/s,Receiver type:GPS L1 band,C/A code;
    Higher positioning accuracy GPS available
    F3 Compass module 2-Axis
    Electronic compass technology
    Heading measurement range: 0~360°, Heading accuracy: <±1.0°RMS
    With hard magnetic compensation
    Optional higher precision or three-dimensional compass module
    F4 Gyro module ±100/250/400°/s, X/Y/Z axis dynamic angular rate
    In-run bias: ±0.02°/s, Non-linearity: 0.1%FS
    Bandwidth: 50Hz,Noise density:0.02°/s/√Hz
    Higher accuracy gyro module available
    F5 Vibration module Three-axis vibration detection, frequency response≤5 kHz
    Range: 0g~±1g/ ±5g/ ±10g/ ±20g, adjustable
    Sampling(real-time): 20.48 kSPS
    Filter programmable, 11pcs set points
    FFT, 512-point, real valued, all three-axis(x, y, z)
    Storage: 14 FFT records on all three-axis(x, y, z)
    Alarm programmable, 6 spectrums
    Temperature
    drift
    D1 Temperature drift Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°
    D2 Temperature drift Temperature compensation range 0~60℃, accuracy ±0.01°@>±30°
    D3 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@≤±30°
    D4 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@>±30°
    D5 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@≤±30°
    D6 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@>±30°
    D7 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@≤±30°
    D8 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@>±30°
    D9 Temperature drift Temperature compensation range-40~85℃, accuracy ±0.05°@≤±30°
    D10 Temperature drift Temperature compensation range -40~85℃, accuracy ±0.05°@>±30°
    Table 4 Options
    Item P/N Option name Function
    Installation
    tools
    SST003-01-01 Magnetic base 50kg suction, permanent magnet, stainless steel
    materials
    SST003-01-04 Adjustable base with
    micrometer screw
    Three-points adjustment, resolution 0.001mm,
    stainless steel materials
    Software SST003-04-09 PC application software Setting function, Command function, Tool function
    Operating platform: windows XP, Windows 7
    Power SST003-09-02 Portable battery packs Output 24VDC, Continuous work 24 hours,IP65,
    rechargeable
    Test report SST003-11-01 Test report for
    cross-axis sensitivity
    Test report under banking tilt, average 11 points
    of full range
    SST003-11-02 Absolute linearity Average 21 points of full range
    SST003-11-03 Test report for Alloewd
    Installations misa lignment
    Axis migration test report for vertical and
    horizontal axis of inclinometer,3 angles
