T24-HA

By Mantracourt

• Mantracourt
• Receives data from up to 12 wireless transmitters
• Summed total of inputs feature
• Auto ‘power on’ and ‘power off’ of remote transmitters
• Transmits data to wireless printer
• Simple wireless configuration and calibration
• Wireless range of up to 800 m (2,600 ft)
• Battery powered 40 hours use
• Waterproof to IP67

Send me a qoutation

Description

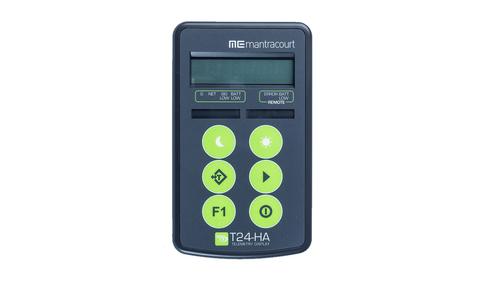

This wireless portable display receiver provides an 8 digit LCD reading from up to 12 of the T24 transmitters.
The T24-HA can be operated in two modes:

Result Mode sums the values from the ‘paired’ acquisition modules making this sum the primary displayed value.
Item Mode allows the user to select which acquisition module value to display.

The T24 transmitters can be ‘powered on’ and ‘powered off’ automatically by the T24-HA handheld. Status indicators inform the user if the remote transmitter module has input integrity problems, low battery, low signal, over range or other error. The T24-HA display can be toggled between gross and a tared value and can optionally be scaled to change measurement units.

In addition, a function key can be configured to retransmit the displayed value to other T24 modules such as a printer.

The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio telemetry technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.

This wireless portable display receiver uses a pair of standard alkaline AA batteries and is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.
