Submersible Inclinometer

Description

• Product info

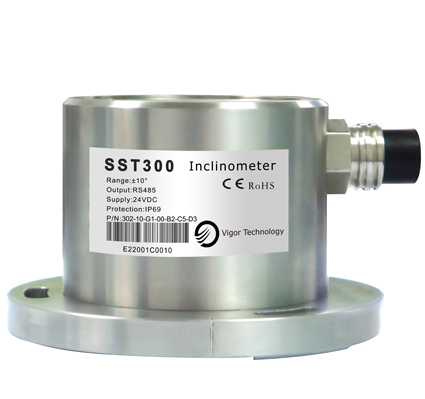

  Vigor’s Submersible Inclinometer provides very high combined accuracy and real-time remote monitoring of tilt of submerged structures or slow moving object. A high-performance SST300 sensor mounted inside a rugged waterproof housing to under-water with max.3000m.
  The inclinometer housing is machined and welded from solid stainless steel, each product meet with highpressure test, to providing extreme endurance for long-term high-pressure underwater environment. The cable and socket is a submarine grade connector, which provides watertight performance at depths exceeding 3000 meters.
  This unit provides ±0.1%FS Cross-axis sensitivity and ±0.01°Combined absolute accuracy. It is a real high performance product.
  To resolve the difficult installation underwater, this unit performs a special parameter named as “Allowed Input axis misalignment” which can reduce the installation error more when the real tilt direction not consistent to unit sensitivity axis.
  The inclinometer can be mounted directly on horizontal, vertical or inclined surfaces. In all three situations, no precision leveling or alignment of the inclinometer is required as the wide measurement range (+/-60°) allows for latitude in installation.

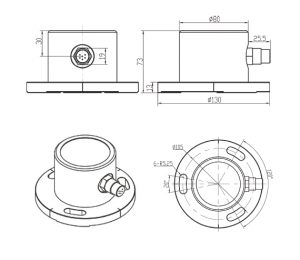

• Size & Wiring























  Pin	RS485 output	CAN
  1	Power+	Power+
  2	Power-	Power GND
  3	Signal GND	NC
  4	NC	CANH
  5	NC	CANL
  6	RS485A	NC
  7	RS485B	NC
  8	NC	NC







• Ordering













  For example, if order a single axis inclinometer, with range ±15°, Output RS485, Watertight cable with plug, vibration suppression fun-tion, 3000m underwater housing (B2), the model should be chosen as: SST301-15-G1-F5-B2-C5-00.

  Table 3 Accessories

  Item	Order Code	Accessories name	Function
  Output interface	G1	RS485 output	Standard industrial Modbus protocol
  	G3	CAN	Standard industrial interface
  Cable/Plug	C5	Watertight cable with plug	3000m underwater with special plug
  Temperature drift	D1	Temperature drift	Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°
  	D2	Temperature drift	Temperature compensation range 0~60℃, accuracy ±0.01°@>±30°

  Table 4 Options

  Item	P/N	Option name	Function
  Display& Software	SST003-04-09	PC application software	Functions: serial port setting, control, diagnose, record, adjustable sampling, zero setting and zero recovery, adjustable vibration suppression filter parameters
  	SST003-04-13	Flatness measuring software	Measure and display the surface flatness of object
  	SST003-04-14	Verticality measuring software	Through multi-sensors, to realize the whole object’s vertical measurement and display
  Power	SST003-09-02	Portable battery packs	Output 24VDC,Continuous work 24 hours, IP65, rechargeable
  	SST003-09-03	Complementary power combined with solar and wind energy	Solar and wind energy, output 24VDC@1A, Day & night working
  Test report	SST003-11-01	Test report for cross-axis error	Accuracy test report under banking tilt, average 11 points of full range
  	SST003-11-03	Test report for Allowed Installation misalignment	Axis migration test report for vertical and axis of inclinometer, 3 angles of point
  	SST003-11-13	Test report for salt spray	According to MIL standard(meet MIL-810F 509.4)
  	SST003-11-14	Test report for IP protection	According to IEC standard
