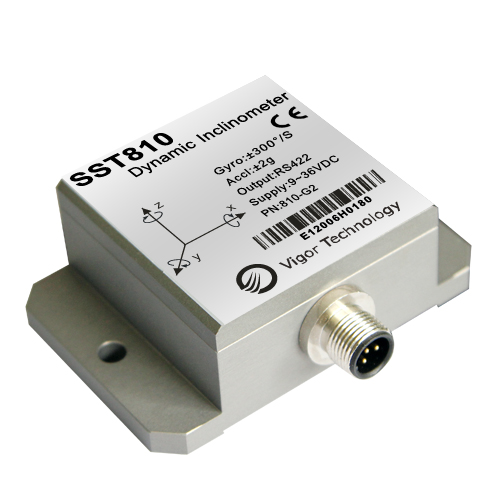

SST810 Dynamic Inclinometer

Description

• Product info

  SST810 dynamic inclinometer is specially designed for motion application, which is an inertial product measures dynamic roll/pitch angle with high update rate. SST810 has concentrated Vigor years of application experiences and technologies of tilt measurement, combines with inertial navigation technology, to achieve max. 1000Hz update rate.

  Traditional inclinometer based on accelerometer and electrolyte principles. In dynamic motion such as rapid movement vehicle and vessel, the measurement result will be affected by extra axial acceleration and centripetal acceleration, so that valid angle measurement data can’t identify effectively, and accuracy is unable to guarantee. SST810 adopts advanced inertial navigation technology to exactly measure dynamic pitch/roll angle long term, without aiding of GPS etc..

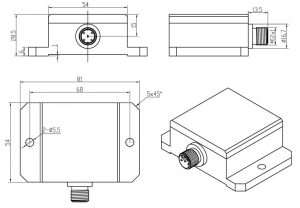

• Size & Wiring



  Table2 Pin definition

  Pin	RS422		RS232		CAN
  1	Power+		Power+		Power+
  2	Power GND		Power GND		Power GND
  3	Signal GND		Signal GND		Signal GND
  4	RS422-TXD+		NC		CAN_H
  5	RS422-TXD-		NC		CAN_L
  6	RS422-RXD+		TXD		NC
  7	RS422-RXD-		RXD		NC























• Ordering

  Producte type	Description
  SST810-G0	With RS232 output
  SST810-G2	With RS422 output
  SST810-G3	With CAN2.0A/B output
  SST810-OEM	No housing
