SST500 Inclinometer

Description

• Product info

  SST500 inclinometer is a revolutionary tilt measurement product, fully absorbs and learns from high precision military inertial navigation technology, precise fusion with machine-electric & inertial test technologies, applied to variety of high-class industrial & military applications.
  SST500 inclinometer adopts inertial navigation grade servo accelerometer, with <0.1μg resolution, >25Hz frequency response, >120dB signal-noise ratio. Achieve ± 1.3” accuracy at room temperature.
  SST500 performs excellent dynamic characteristics, long-term stability, and environmental adaptability, experienced with various static & quasi-static long-term works under industrial & military harsh environment. Thanks Vigor’s engineers for making complete modal testing for whole body & key components, to minimize interference from outside shock & vibration. To maximize reliability of SST500 inclinometer, modeling analysis, regulated software & hardware reliability design, selected proven components directory, finite element analysis(thermal reliability analysis,relistructural reliability analysis)and FMEA, have been made to ensure the optimal performance and stability as well.

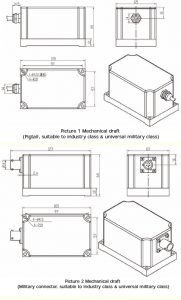

• Size & Wiring

















































  Table 2 Wiring definition

  Socket pin	Pigtail cable	Output(single or double axis)
  		RS232	RS485	RS422	CAN
  A	Red	Power +	Power +	Power +	Power +
  B	Black	Power –	Power –	Power –	Power –
  C	Green	Signal GND	Signal GND	Signal GND	Signal GND
  D	Yellow	NC	NC	RS422-RXD+	CANH
  E	White	NC	NC	RS422-RXD-	CANL
  F	Blue	RS232-TXD	RS485-A	RS422-TXD+	NC
  G	Brown	RS232-RXD	RS485-B	RS422-TXD-	NC

  Note: 1. Don’t connect signal GND and Power GND together.
  2. Other outputs on request.

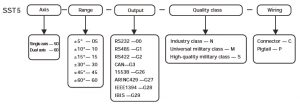

• Ordering
