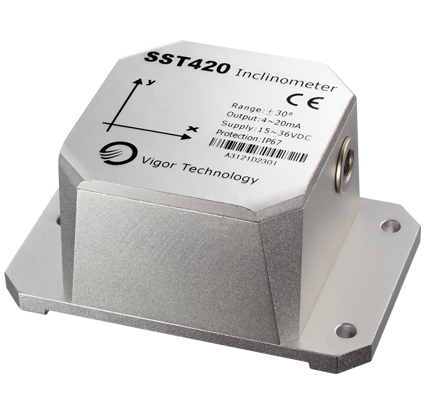

SST400 Inclinometer

Description

• Product info

  SST400 inclinometer is intelligent renewed product, improved functions & performances comprehensively.SST400 inclinometer strictly tested and combined with simulation & process with advanced EDA&CAE technologies including materials collection, heat treatment, finite element analysis, modal analysis & test(include housing, sensitive apparatus, PCB board and relationship between characters of each other).
  SST400 inclinometer adopts Vigor’s patented automatic testing technology, not only general test, correct and compensate to temperature drift/non-linearity/cross-axis sensitivity error/orthogonal error/sensitive axis and so on, also made life test with different angular rate & angular acceleration impact and long time temperature cycle test for each product. More test programs, correction and compensation of parameters can be made as special request.

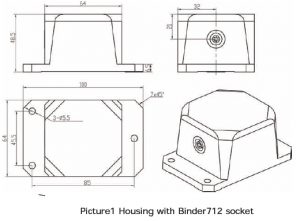

• Size & Wiring







































  Table 1 Binder712 wiring

  Binder712 socket pin	Cable wire colour	Output
  		4~20mA	0~5VDC	RS232	RS485	RS422	CAN
  1	Red	Power +	Power +	Power +	Power +	Power +	Power +
  2	Black	Power –	Power –	Power –	Power –	Power –	Power –
  3	Green	Signal GND	Signal GND	Signal GND	Signal GND	Signal GND	Signal GND
  4	Yellow	Ioutx	Voutx	NC	NC	RS422-RXD+	CANH
  5	White	Ioutx	Voutx	NC	NC	RS422-RXD-	CANL
  6	Blue	NC	NC	RS232-TXD	RS485-A	RS422-TXD+	NC
  7	Brown	NC	NC	RS232-RXD	RS485-B	RS422-TXD	NC



• Ordering

  Model	Axis	Output type	Range
  SST410	1	4~20mA	±5° ±10° ±15° ±30°
  SST420	2	4~20mA
  SST430	1	0~5VDC
  SST440	2	0~5VDC
  SST450	1	RS232(optional RS485,RS422)
  SST460	2	RS232(optional RS485,RS422)
