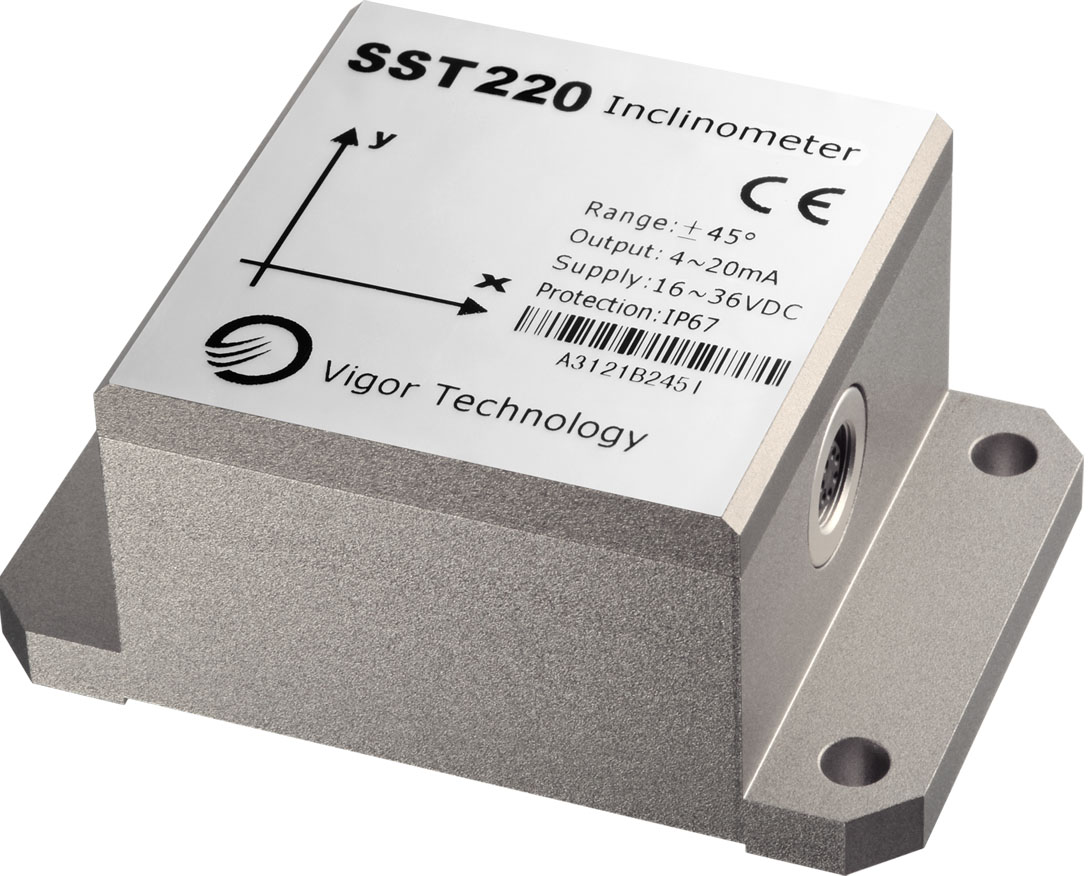

SST200 Inclinometer

Description

• Product info

  SST200inclinometer based on MEMS technology,integrated with cross-axis sensitivity compensation,filte
  ring,nonlinearity correction,CAE&EDA simulation and patented automatic testing technology,to meet various
  industrial measurement & control in most hash environment.
  SST200 inclinometer performs high reliability & stability. Thanks full-sealed technology,enhanced PCBA,
  intelligent power management,enhanced anti-shock & anti-vibration,enforced cable (heavy duty up to
  30kg) assembly and robust aluminium alloy house(with heat treatment and anti-torsion finishing). As
  well as the long-term dynamic simulation and patented auto-test technology.
  SST200 meets various strict or special military applications. As request,make fixed test programs according
  to MIL/EN/IEC/GJB etc. standards. As general option,the total temperature drift can reach ±0.1°
  within -40~+85℃ .



  Applications
  Factory automation,Precision instruments,Vessel,Engineering machinery,Aerospace,Civil engineering,
  Military project.

• Size & Wiring

  Dimensions(mm)





  Table2 Wiring





  Binder712/Pigtail definition

  Binder712 Socket Pin	Pigtail Cable Color	SST250,SST260				SST220	SST210	SST240	SST230
  		RS232	RS485	RS422	CAN	4~20mA		0.5~4.5VDC
  1	Red	Power+	Power+	Power+	Power+	Power+	Power+	Power+	Power+
  2	Black	Power-	Power-	Power-	Power-	Power-	Power-	Power-	Power-
  3	Green	Signal GND	Signal GND	Signal GND	Signal GND	Signal GND	Signal GND	Signal GND	Signal GND
  4	Yellow	NC	NC	RS422-RXD+	CANH	Ioutx	Iout	Voutx	Vout
  5	White	NC	NC	RE422-RXD-	CANL	Iouty	NC	Vouty	NC
  6	Blue	RS232-TXD	RS485-A	RS422-TXD+	NC	NC	NC	NC	NC
  7	Brown	RS232-RXD	RS485-B	RS422-TXD-	NC	NC	NC	NC	NC



• Ordering

  Model	Axis	Connection	Output type	Range
  SST210	1	Binder712(-C), optional Pigtail(-P)	4~20mA	±5°,±10°,±15°,±30° ,±45°,±60°,±90°
  SST220	2	Binder712(-C), optional Pigtail(-P)	4~20mA
  SST230	1	Binder712(-C), optional Pigtail(-P)	0.5~4.5VDC
  SST240	2	Binder712(-C), optional Pigtail(-P)	0.5~4.5VDC
  SST250	1	Binder712(-C), optional Pigtail(-P)	RS232(Option RS485, RS422, CAN)
  SST260	2	Binder712(-C), optional Pigtail(-P)	RS232(Option RS485, RS422, CAN)
