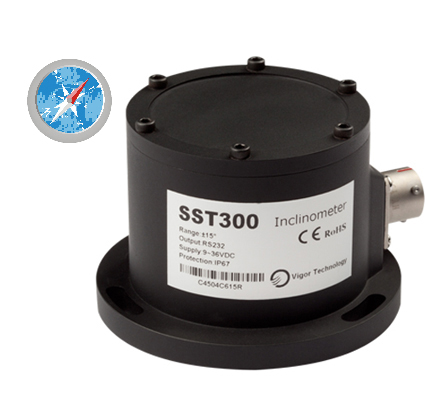

Ranged Inclinometer

By Vigor Technology

• Vigor Technology
• Measuring three-dimensional angle information: roll, pitch and heading
• Maximum measuring range for roll/pitch angle: ±60°
• Heading accuracy ±5°RMS@≤±30°, resolution 0.01°
• Tilt repeatability accuracy±0.0025°
• Refresh rate 5~20Hz
• Customized higher accuracy and dynamic nature products
• Patented tilt measurement technology to realize real high accuracy

Send me a qoutation


  • Product info

    Ranged inclinometer is developed to detect target motion objects’ three-dimensional attitude, meanwhile output heading angle(relative to the arctic) and X/Y axis angle data(relative to the 20130509230957548absolute horizontal plane). Mainly applicable to high precision tilt angle measurement and need heading data in indoor or outdoor industrial field.
    Ranged inclinometer is a complement for GPS inclinometer, can realize X, Y, Z three direction attitude measuring without space restrictions, with stable and reliable heading data, calibration function for soft iron and hard iron, eliminate ambient magnetic which influence heading measurement accuracy. It suits for vehicle, onboard, ship and robot application.
    √ ±0.02%FS linearity
    √ ±0.005°Offset
    √ Combine with gyro module, realize static/dynamic angle different measuring for low/rapid leveling
    √ Combine with vibration module, realize FFT computations different in-time, output vibration frequency and amplitude different data directly, eliminate the influence of environment different vibration
    √ Combine with GPS module, realize data synchronization data acquisition and local position data in different installation places
    √ Further confirmed that offset, repeatability, hysteresis, turn on repeatability etc. parameters which are important influence factors to unit total performance evaluation
    √ Internal enhanced advanced intelligent algorithms drastically reduce cross-axis sensitivity, upgrades real tilt angle measuring accuracy, abandoned the traditional incomplete understanding for tilt angle measurement precision concept
    √ Greatly reduce measuring errors when the real tilt direction not consistent for unit’s actual sensitive axis
    √ Short-circuit, transient voltage and transposition protection to adapt to industry environment
    √ User can set unit parameters and query factory data

  • Ordering



    For example, if order a Ranged inclinometer, with range ±15°, room temperature accuracy ±0.02°, -20~60℃ accuracy ±0.02°, two meters cable with plug,the model should be chosen as: SST302-15-00-F3 -00-C11-D3(2m).
    Meanwhile some options (See table 4):
    PC application software——order number SST003-04-09

    Table 3 Accessories
    Item Order Code Accessories name Function
    00 RS232 Directly angle output
    Data format: Baud rate:115200(adjustable), 8 data bits, 1 start bit,
    1 stop bit, none parity
    Refresh rate:5Hz, optional: 10Hz, 20Hz
    G1 RS485 Isolated, Compatible with half-duplex or full-duplex communication;
    ±15kV ESD protection
    Compatible with ANSI/TIA/EIA-485-A-98 & ISO8482:1987(E)
    Comply with UL1577—2500V rms for 1min;
    Transmission rate up to 500 kbps, support max 256pcs node
    High common mode transient suppression ability>25kV/us;
    Support Modbus-RTU, sensor supply HEX or ASCII communication
    G2 RS422
    Cable/Plug C1 Standard plug
    with Cable
    Meet MIL-C-26482,Standard 2m cable,IP67 protection, heavy duty up to 30kg
    C6 Standard plug Meet to MIL-C-26482
    D1 Temperature drift Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°
    D2 Temperature drift Temperature compensation range 0~60℃, accuracy ±0.01°@>±30°
    D3 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@≤±30°
    D4 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@>±30°
    D5 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@≤±30°
    D6 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@>±30°
    D7 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@≤±30°
    D8 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@>±30°
    D9 Temperature drift Temperature compensation range-40~85℃, accuracy ±0.05°@≤±30°
    D10 Temperature drift Temperature compensation range -40~85℃, accuracy ±0.05°@>±30°
    Table 4 Options
    Item P/N Option name Function
    SST003-01-04 Adjustable base with
    micrometer screw
    Three-points adjustment, resolution 0.001mm,
    stainless steel materials
    Power SST003-09-02 Portable battery packs Output 24VDC,Continuous work 24 hours, IP65, rechargeable
    SST003-11-01 Test report for cross-axis
    Test report under banking tilt, average 11 points of full
    SST003-11-02 Absolute linearity Average 21 points of full range
    SST003-11-03 Test report for Allowed
    Installation misalignment
    Axis migration test report for vertical and axis of inclinometer, 3 angles of point
