nemi G+ nano
By nemione

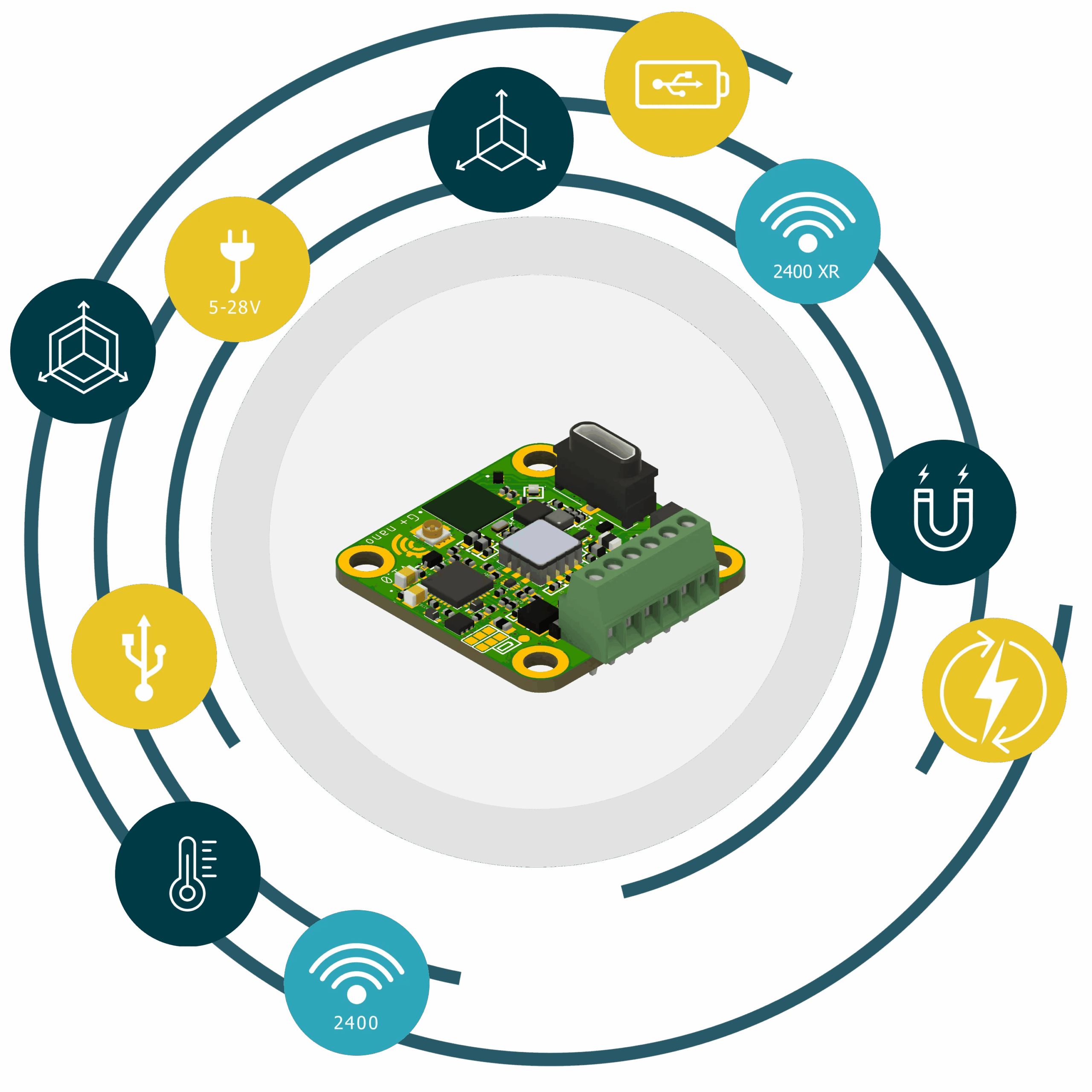

• Tiny and lightweight design (30 x 30 x 12) mm, 6 grams
• High-resolution, low-noise, capacitive MEMS acceleration / vibration sensor
• Integrated accelerometer, gyroscope and magnetometer (3 axes each) and temperature sensor
• Completely wireless with maximized battery life due to our radio technology nemi Link 2400 and solar panel
• Energy Harvesting: solar panel offers unlimited run times
• Transmission of live raw data or smart data pre-evaluated by edge computing
Description
Tiny, Wireless Sensor with Energy Harvesting Module for Measuring Accelerations, Vibrations and Rotation Rates

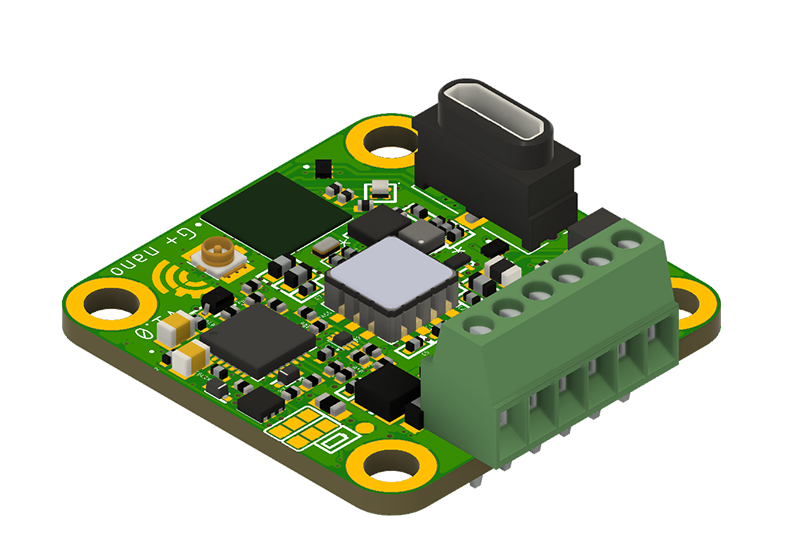

nemi G+ nano is a tiny Integrated Sensing product on board level for wireless measuring vibrations / accelerations, rotation rates, rotation angles and magnetic fields in and around all three axes. Due to the highly efficient nemi Link 2400 radio technology, very long battery runtimes can be achieved. With solar Energy Harvesting battery runtimes can be extended many times over. It is also suitable for permanent installations using a wide-range voltage input or the solar panel (under good conditions).
Because of the compact and lightweight design nemi G+ nano can easily be integrated in smallest installation spaces and turns your components and machines into smart products. nemi G+ nano is ideally suited for use in rotating or moving applications such as pitch bearings of wind turbines or gearboxes.
