nemi EdgeBase
By nemione
• Receiver for up to 8 sensor nodes in the radio network nemi Link 2400
• Integrated accelerometer, gyroscope and magnetometer (3 axes each), temperature sensor and GPS
• 64 bit Linux edge computing power with 4 x 1.2 GHz CPU and 1 GB RAM
• Data transfer via secure 4G cellular connection or wired network
• Transmission of raw time raw data as compressed binary files or pre-evaluated data as MQTT streams using edge computing with Python scripts (smart data)
• Robust, weatherproof IP 65 housing with passive cooling
Description

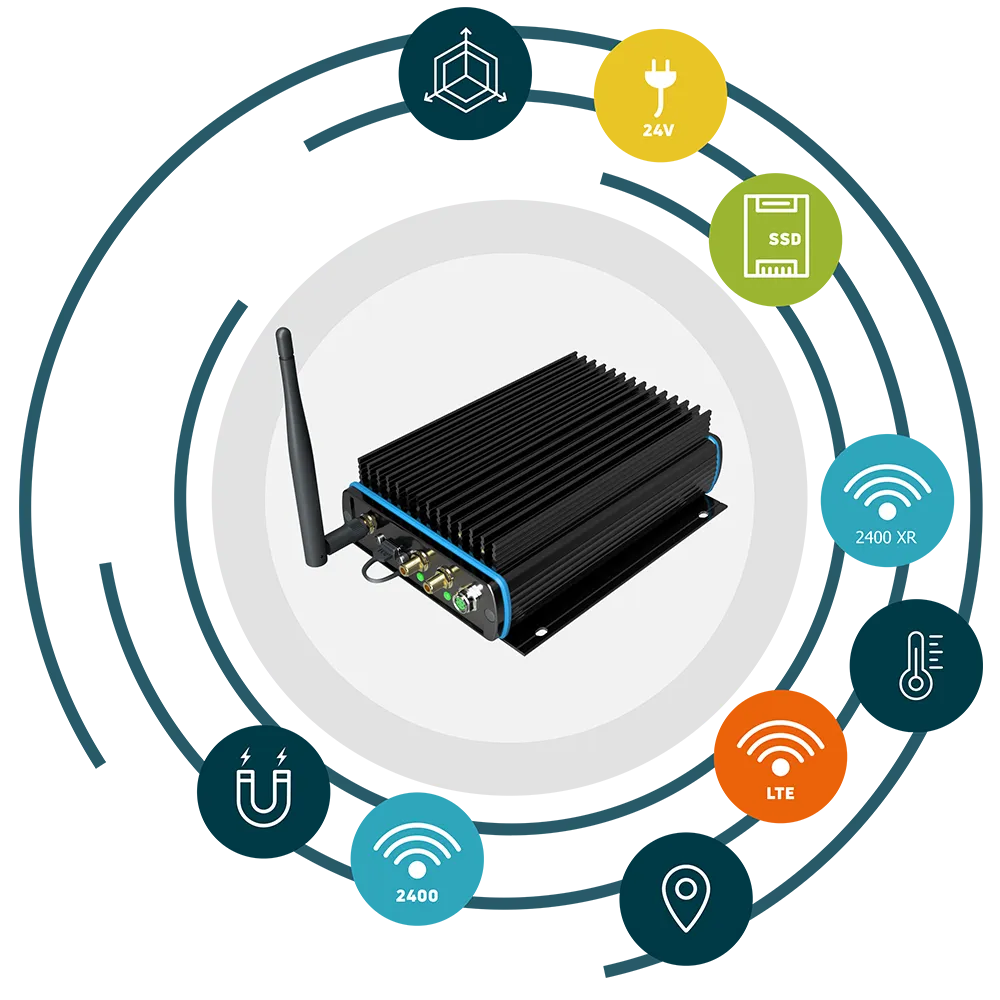

4G-Gateway with Linux Operating System and Edge Computing Capabilities
nemi EdgeBase forms the bridge between the sensor nodes in the wireless network nemi Link 2400 and worldwide networks. As a gateway, it receives the data from up to eight wireless sensor nodes or measures data itself through integrated MEMS and GPS technology. All data can be stored on an internal SSD drive. For data reduction, edge analytics based on Python scripts can be performed on nemi EdgeBase before data is transmitted over a secure 4G cellular connection or a wired network connection. The 4G-Gateway nemi EdgeBase is convincing in various use cases where long-term monitoring is carried out to perform predictive maintenance. This includes, for example, permanent data acquisition for load monitoring on wind turbines, condition monitoring of rolling bearings or the permanent monitoring of roller coaster ride performance.
