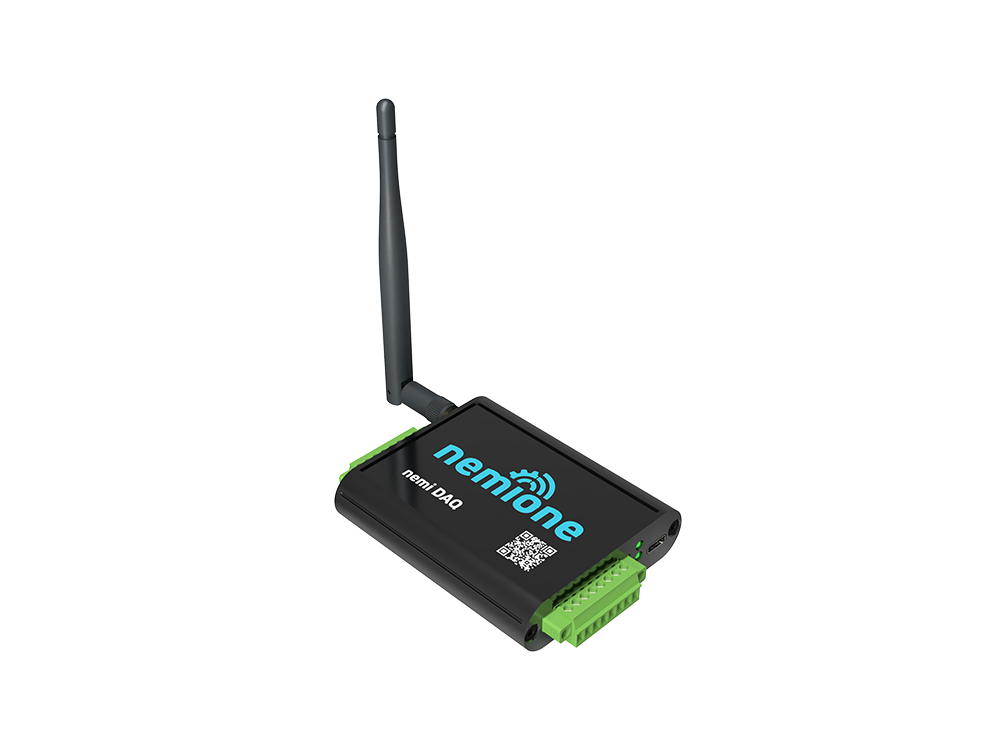

nemi DAQ
By nemione
• Small and lightweight design (86 x 72 x 19) mm, 150 grams
• Integrated accelerometer, gyroscope and magnetometer (3 axes each) and temperature sensor
• High resolution 24 bit analog-digital converter (ADC) with integrated signal amplifier and low measurement noise
• Completely wireless with maximized battery life due to our radio technology nemi Link 2400
• Transmission of live raw data or smart data pre-evaluated by edge computing
• Weather resistant box on request
Description
Wireless Multi Sensor for Measuring Strains, Forces, Displacements and much more

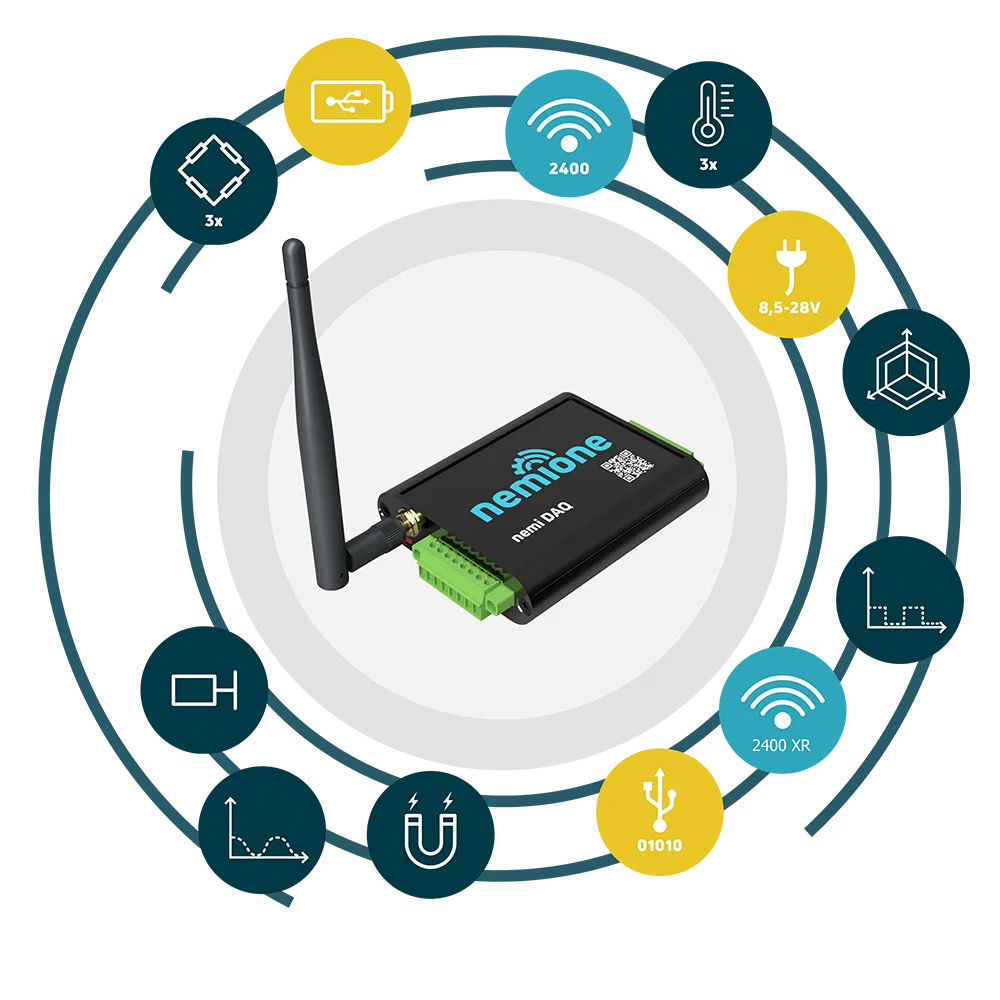

nemi DAQ is i4M’s small all-rounder in terms of Data AcQuisition. It is a wireless telemetry module with a wide range of connection options to measure and monitor strains, loads, forces, displacements (e.g. cracks) or temperatures. In addition to that, various digital and analog sensors can be connected. With its integrated IMU, it also measures accelerations, rotation rates, rotation angles and magnetic fields. Due to the long battery life and our highly efficient radio technology nemi Link 2400, nemi DAQ is ideally suited for use in rotating or moving applications such as torsion / torque measurements in drive trains or load measurements on rotating or moving components. For permanent installations, it can be operated with a wide-range voltage input.
