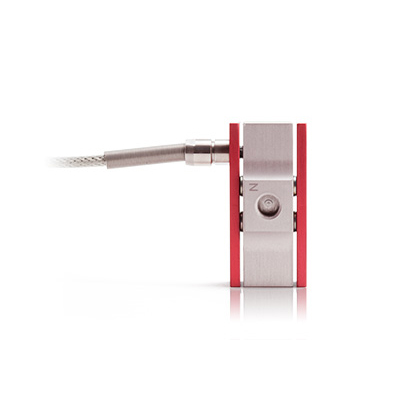

LRF325
By FUTEK
• Light Weight
• Low Deflection
• 2024 Aluminum Construction
• In both Tension & Compression
• Low capacity applications
• Utilizes Metal Foil Strain Gauge Technology
• Weighs only 1.8 oz
Description
Product Description
The Inline Low Profile Tension & Compression Load Cell offers a compact design for inline loading applications. With a height of only 0.75”, the LRF325 Low Profile Tension & Compression Load Cell is a great selection where tight environments or space is a challenge. The Standard LRF325 Low Profile Tension & Compression Load Cell model has female/female threads, 2024 Aluminum construction, with the choice of a 10 feet 4 conductor shielded PVC cable (28 AWG) or Strain Relief. It is well suited for low capacity requirements (25 – 100 lb) and for any applications that require a higher capacity range, please refer to the LRF350.
With all of its design features the Low Profile Tension & Compression Load Cell has a high accuracy with a Nonlinearity of ±0.1%, deflection of 0.004” nominal and an operating temperature of -60° F to 200° F. This Load Cell can be modified or customized to meet your requirements and most capacites are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.
Product Highlights:
- Light Weight
- Low Deflection
- 2024 Aluminum Construction
- In both Tension & Compression
- Low capacity applications
- Utilizes Metal Foil Strain Gauge Technology
- Weighs only 1.8 oz
LRF325 , 75 lb , Low Profile Tension & Compression , Standard , Material – 2024-T4 , 1/4-28-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
| DIMENSION | VALUE |
|---|---|
| Width (in) | 0.7 |
| Height (in) | 0.75 |
| Length (in) | 1.61 |
| Weight (oz) | 1.8 |
| NAME | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|
| Compensated Temperature | 60 | 160 | F | |
| Excitation | 1 | 15 | Vdc | |
| Hysteresis | -0.1 | 0.1 | % of R.O. | |
| Input Resistance | 394 | Ohms nom. | ||
| Insulation Resistance | 500 | Mohms @ 50 Vdc | ||
| Nonlinearity | -0.1 | 0.1 | % of R.O. | |
| Nonrepeatability | -0.05 | 0.05 | % of R.O. | |
| Operating Temperature | -45 | 200 | F | |
| Output Resistance | 350 | Ohms nom. | ||
| Safe Overload | 150 | % of R.O. | ||
| Temperature Shift Span | -0.005 | 0.005 | % of Load/F | |
| Temperature Shift Zero | -0.005 | 0.005 | % of R.O./F | |
| Zero Balance | -1 | 1 | % of R.O. | |
| Capacity | 75 | lbs | ||
| Rated Output | 2 | mV/V nom. | ||
| Calibration Excitation | 10 | Vdc | ||
