LLB500

By FUTEK

• Load Button Load Cell
• Low Deflection
• Standard, Bottom #6-32 Tapped Holes
• Material - 17-4 PH S.S.
• Available with 3 different capacities 15000 lb - 20000 lb - 30000lb

Send me a qoutation

Description

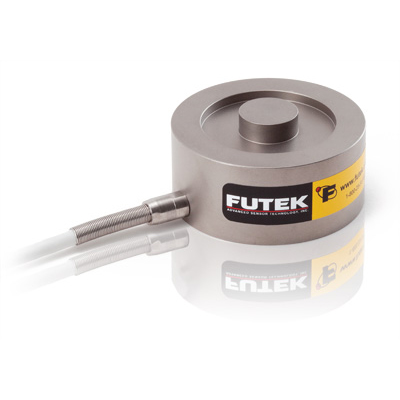

Model LLB500 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB500 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 2.0” outside diameter and a 10 feet long 24 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.003” nominal. The standard LLB500 Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.

Product Highlights:

  • Low Deflection
  • 17-4 Stainless Steel Construction
  • Compression
  • Utilizes Metal Foil Strain Gauge Technology




  • FSH00883 – Capacity: 15000 lbs

    LLB500 , 15000 lb , Load Button Load Cell , Standard, Bottom #6-32 Tapped Holes , Material – 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

    DIMENSION VALUE
     Height (in)  1
     Weight (oz)  10
     Dia (in)  1.98



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  % of R.O.
     Input Resistance  700  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  700  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  15000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00884 – Capacity: 20000 lbs

    LLB500 , 20000 lb , Load Button Load Cell , Standard, Bottom #6-32 Tapped Holes , Material – 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

    DIMENSION VALUE
     Height (in)  1
     Weight (oz)  10
     Dia (in)  1.98



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  % of R.O.
     Input Resistance  700  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  700  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  20000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00885 – Capacity: 30000 lbs

    LLB500 , 30000 lb , Load Button Load Cell , Standard, Bottom #6-32 Tapped Holes , Material – 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

    DIMENSION VALUE
     Height (in)  1
     Weight (oz)  10
     Dia (in)  1.98



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  % of R.O.
     Input Resistance  700  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  700  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  30000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
