LLB400
By FUTEK
• Low Deflection
• 17-4 Stainless Steel Construction
• Compression
• Utilizes Metal Foil Strain Gauge Technology
Description

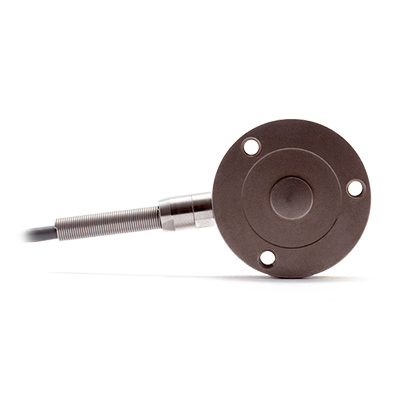

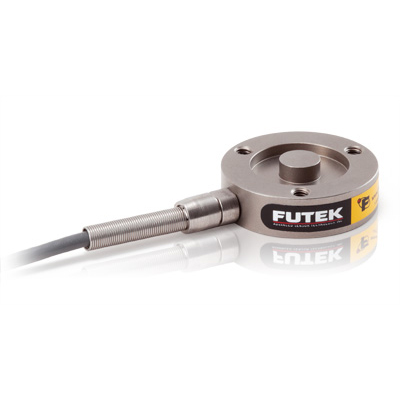

Model LLB400 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB400 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 1.25” outside diameter and a 10 feet long 26 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.
Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.0009” to 0.0015” nominal. The standard LLB400 Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.
Subminiature & Miniature
Space constraints can sometimes make it difficult to choose the right load cell for your test and measurement platform. Keeping this challenge in mind, we designed miniature and subminiature models for our Load Button Load Cell Series.
Unique Features
Low profile height, resistance to extraneous loads, and multiple capacity options are a few of the features that make these load sensors ideal for press applications. Review the entire product series from 1000 g to 50000 lb.
LLB Series Instruments
FUTEK’s instrument line includes Strain Gauge Analog Amplifiers, USB Solutions, panel mounts, and handheld displays. Our wide array of instruments provides our customers with incredibly fast and accurate results.
-
FSH03889 – Capacity: 100 lb
LLB400 , 100 lb , Load Button Load Cell , RoHS Compliant, Bottom Tapped Holes , Material – 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
DIMENSION VALUE Dia (in) 1.23 NAME MIN TYP MAX UNIT Compensated Temperature 60 160 F Excitation 1 18 Vdc Hysteresis -0.15 0.15 % of R.O. Input Resistance 740 Ohms nom. Insulation Resistance 500 Mohms @ 50 Vdc Nonlinearity -0.15 0.15 % of R.O. Nonrepeatability -0.05 0.05 % of R.O. Operating Temperature -60 200 F Output Resistance 740 Ohms nom. Safe Overload 150 % of R.O. Temperature Shift Span -0.02 0.02 % of Load/F Temperature Shift Zero -0.01 0.01 % of R.O./F Zero Balance -3 3 % of R.O. Capacity 100 lbs Rated Output 2 mV/V nom. Calibration Excitation 10 Vdc Shunt Calibration 100 kOhm -
FSH03890 – Capacity: 250 lb
LLB400 , 250 lb , Load Button Load Cell , RoHS Compliant, Bottom Tapped Holes , Material – 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
DIMENSION VALUE Dia (in) 1.23 NAME MIN TYP MAX UNIT Compensated Temperature 60 160 F Excitation 1 18 Vdc Hysteresis -0.15 0.15 % of R.O. Input Resistance 740 Ohms nom. Insulation Resistance 500 Mohms @ 50 Vdc Nonlinearity -0.15 0.15 % of R.O. Nonrepeatability -0.05 0.05 % of R.O. Operating Temperature -60 200 F Output Resistance 740 Ohms nom. Safe Overload 150 % of R.O. Temperature Shift Span -0.02 0.02 % of Load/F Temperature Shift Zero -0.01 0.01 % of R.O./F Zero Balance -3 3 % of R.O. Capacity 250 lbs Rated Output 2 mV/V nom. Calibration Excitation 10 Vdc Shunt Calibration 100 kOhm -
FSH03891 – Capacity: 500 lb
LLB400 , 500 lb , Load Button Load Cell , RoHS Compliant, Bottom Tapped Holes , Material – 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
DIMENSION VALUE Dia (in) 1.23 NAME MIN TYP MAX UNIT Compensated Temperature 60 160 F Excitation 1 18 Vdc Hysteresis -0.25 0.25 % of R.O. Input Resistance 740 Ohms nom. Insulation Resistance 500 Mohms @ 50 Vdc Nonlinearity -0.25 0.25 % of R.O. Nonrepeatability -0.05 0.05 % of R.O. Operating Temperature -60 200 F Output Resistance 740 Ohms nom. Safe Overload 150 % of R.O. Temperature Shift Span -0.02 0.02 % of Load/F Temperature Shift Zero -0.01 0.01 % of R.O./F Zero Balance -3 3 % of R.O. Capacity 500 lbs Rated Output 2 mV/V nom. Calibration Excitation 10 Vdc Shunt Calibration 100 kOhm -
FSH03892 – Capacity: 1000 lb
LLB400 , 1000 lb , Load Button Load Cell , RoHS Compliant, Bottom Tapped Holes , Material – 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
DIMENSION VALUE Dia (in) 1.23 NAME MIN TYP MAX UNIT Compensated Temperature 60 160 F Excitation 1 18 Vdc Hysteresis -0.25 0.25 % of R.O. Input Resistance 740 Ohms nom. Insulation Resistance 500 Mohms @ 50 Vdc Nonlinearity -0.25 0.25 % of R.O. Nonrepeatability -0.05 0.05 % of R.O. Operating Temperature -60 200 F Output Resistance 740 Ohms nom. Safe Overload 150 % of R.O. Temperature Shift Span -0.02 0.02 % of Load/F Temperature Shift Zero -0.01 0.01 % of R.O./F Zero Balance -3 3 % of R.O. Capacity 1000 lbs Rated Output 2 mV/V nom. Calibration Excitation 10 Vdc Shunt Calibration 100 kOhm -
FSH03893 – Capacity: 2000 lb
LLB400 , 2000 lb , Load Button Load Cell , RoHS Compliant, Bottom Tapped Holes , Material – 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft LongDIMENSION VALUE Dia (in) 1.23 NAME MIN TYP MAX UNIT Compensated Temperature 60 160 F Excitation 1 18 Vdc Hysteresis -0.25 0.25 % of R.O. Input Resistance 740 Ohms nom. Insulation Resistance 500 Mohms @ 50 Vdc Nonlinearity -0.25 0.25 % of R.O. Nonrepeatability -0.05 0.05 % of R.O. Operating Temperature -60 200 F Output Resistance 740 Ohms nom. Safe Overload 150 % of R.O. Temperature Shift Span -0.02 0.02 % of Load/F Temperature Shift Zero -0.01 0.01 % of R.O./F Zero Balance -3 3 % of R.O. Capacity 2000 lbs Rated Output 2 mV/V nom. Calibration Excitation 10 Vdc Shunt Calibration 100 kOhm -
FSH03894 – Capacity: 2500 lb
LLB400 , 2500 lb , Load Button Load Cell , RoHS Compliant, Bottom Tapped Holes , Material – 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
DIMENSION VALUE Dia (in) 1.23 NAME MIN TYP MAX UNIT Compensated Temperature 60 160 F Excitation 1 18 Vdc Hysteresis -0.5 0.5 % of R.O. Input Resistance 740 Ohms nom. Insulation Resistance 500 Mohms @ 50 Vdc Nonlinearity -0.5 0.5 % of R.O. Nonrepeatability -0.05 0.05 % of R.O. Operating Temperature -60 200 F Output Resistance 740 Ohms nom. Safe Overload 150 % of R.O. Temperature Shift Span -0.02 0.02 % of Load/F Temperature Shift Zero -0.01 0.01 % of R.O./F Zero Balance -3 3 % of R.O. Capacity 2500 lbs Rated Output 2.5 mV/V nom. Calibration Excitation 10 Vdc Shunt Calibration 87.325 kOhm
