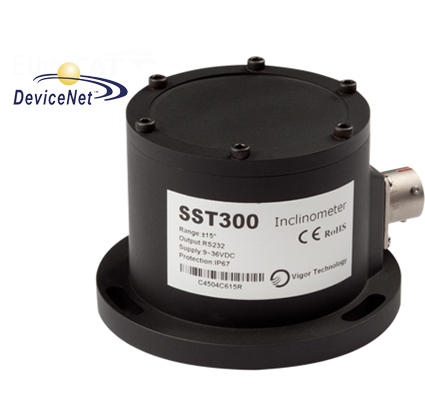

DeviceNet inclinometer

By Vigor Technology

• Vigor Technology DeviceNet
• According to DeviceNet Slave protocol
• Support UCMM explicit message server, client
• Support all kinds of messages, offline connectivity
• Support 5K-1000Kbps total 15 kinds of CiA recommended
• Non-volatile memory storage network parameters, slave station configuration protocol file connectivity
• Built-in high-speed optical isolation
• ODVA certified communication cable

Send me a qoutation


  • Product info

    DeviceNet inclinometer is based on Vigor patent tilt measurement technology and combined with DeviceNet interface. It shortens system building & debug, further reducing user’s construction and maintenance costs. DeviceNet inclinometer except meets OVDA standard and implement industry-standard protocols, furthermore has strong measuring ability:
    √ ±0.02%FS linearity
    √ ±0.005°Offset
    √ Combine with gyro module, realize static/dynamic angle measuring for low/rapid leveling
    √ With vibration module, realize FFT computations in-time, output vibration frequency and amplitude data directly, eliminate the influence of environment vibration
    √ Combine with GPS module, realize data synchronization data acquisition and local position data in different installation places
    √ Further confirmed that offset/repeatability/hysteresis/turn on repeatability etc. parameters which are important influence factors to total performance evaluation
    √ Internal enhanced advanced intelligent algorithms drastically reduce cross-axis error. upgrades real tilt angle measuring accuracy, abandoned the traditional incomplete understanding for tilt angle measurement accuracy concept
    √ Greatly reduce measuring errors when the real tilt direction not consistent for real tilt unit’s actual sensitive axis
    √ Short-circuit, transient voltage, transposition protections to adapt to industry environment
    √ User can set unit’s all kinds of parameters via DeviceNet interface, and query factory data
    DeviceNet Inclinometer supports DeviceNet standard protocol, can achieve point-to-point or point-tomultipoint communication, suit for all kinds of high interference, high real-time requirements and highcapacity data transmission application. Can directly connect and communicate with all kinds of PLC real time.
    A DeviceNet network can support up to 64 nodes and the distance of end-to-end is variable which based on network speed. At 125 Kbps baud, the maximum communication distance is up to 500m. At the highest 500 Kbps, the maximum distance is up to 100m. The bus topology is a trunkline-dropline linear bus.
    C16 cable option(which Data and power functionality in one cable) Offers an Extensive Line-up of Inclinometer for DeviceNet Application.A

  • Ordering


    For example, if order a dual axis DeviceNet inclinometer, with range ±15°, room temperature accuracy ±0.02°, -20~60℃ temperature drift ±0.02°, output DeviceNet interface, 15m meters cable with plug,vibration function module, the model should be chosen as: SST302-15-G6-F5 -00-C13-D3 (15m)

    Table 3 Accessories
    Item Order Code Accessories name Function
    F1 GPS module Positioning accuracy 2.5m CEP; 2.0m @ SBAS
    Local gravity acceleration automatic revision
    Time pulse accuracy: 30ns RMS, Original data refresh rate: 4Hz
    Speed accuracy: 0.1m/s,Receiver type:GPS L1 band,C/A code;
    Higher positioning accuracy GPS available
    F4 Gyro module ±100/250/400°/s, X/Y/Z axis dynamic angular rate
    In-run bias: ±0.02°/s, Non-linearity: 0.1%FS
    Bandwidth: 50Hz,Noise density:0.02°/s/√Hz
    Higher accuracy gyro module available
    F5 Vibration module Three-axis vibration detection, frequency response≤5 kHz
    Range: 0g~±1g/ ±5g/ ±10g/ ±20g, adjustable
    Sampling(real-time): 20.48 kSPS
    Filter programmable, 11pcs set points
    FFT, 512-point, real valued, all three-axis(x, y, z)
    Storage: 14 FFT records on all three-axis(x, y, z)
    Alarm programmable, 6 spectrums
    D1 Temperature drift Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°
    D2 Temperature drift Temperature compensation range 0~60℃, accuracy ±0.01°@>±30°
    D3 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@≤±30°
    D4 Temperature drift Temperature compensation range -20~60℃, accuracy ±0.02°@>±30°
    D5 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@≤±30°
    D6 Temperature drift Temperature compensation range -30~60℃, accuracy ±0.03°@>±30°
    D7 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@≤±30°
    D8 Temperature drift Temperature compensation range -40~65℃, accuracy ±0.05°@>±30°
    D9 Temperature drift Temperature compensation range-40~85℃, accuracy ±0.05°@≤±30°
    D10 Temperature drift Temperature compensation range -40~85℃, accuracy ±0.05°@>±30°
    Table 4 Options
    Item P/N Option name Function
    Network access
    SST003-05-14 8ports industry switcher 8x100MB network, VLAN (IEEE 802.1q)
    Fast redundant ring network protection technology
    based on the ITU-TG.8032 V2 protocol
    Failover time <5ms, support RSTP/STP
    IEEE 802.1x strengthen user authentication
    function, broadcast storm suppression prevent
    network storm disaster
    Level 3 industrial EMC
    Operating Temperature -10℃~+60℃
    Power SST003-09-04 PoE Power 802.3af standard: PI(Power interface: PSE/PD
    network cable interface);Alternative
    A(1,2,3,6,singal line ) and Alternative B(4,5,7,8,
    free line)power type
