µCAN.1.ti-BOX
By MicroControl
• 1-channel analogue input temperature Pt100 / thermocouple
• Temperature measurement at 16 bit resolution
• Pt100 and thermo signals type J, K and L
• Wire break and short circuit detection
• Protocol: CANopen CiA 404
• Expanded ambient temperature range of -40°C .. +85°C
• Mechanic shock resistance of up to 40 G (optional)
• Vibrations resistance of 3 .. 800 Hz @ 4.5 Grms (optional)
Description
1-channel analogue input temperature Pt100 / thermocouple

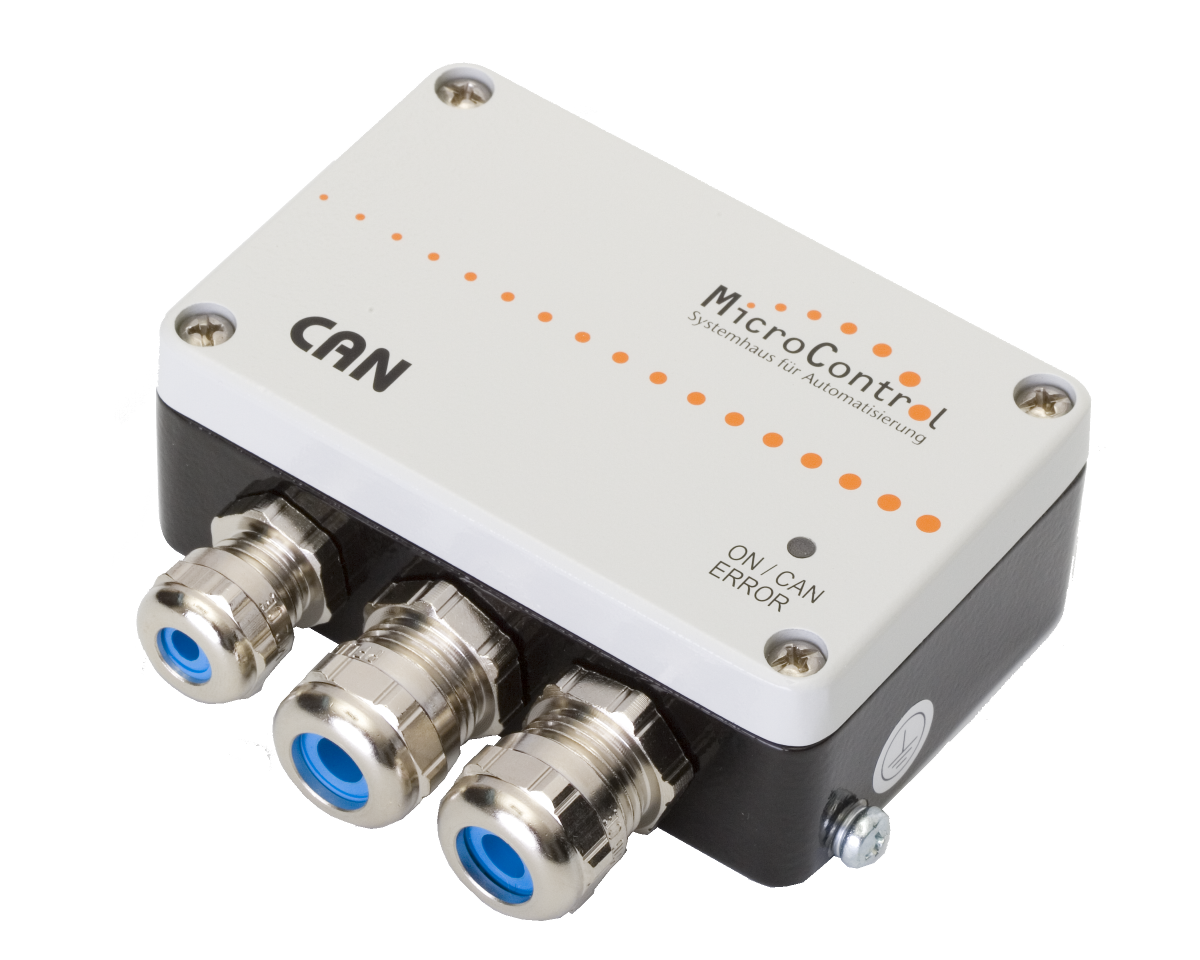

The µCAN.1.ti-BOX is the single channel solution for measuring temperatures. Resistance sensors as well as thermocouples may be connected to the module. The signals are evaluated and linearized within a rugged aluminium die cast casing. The CAN interface supports the CANopen protocol.
Features
The decentralized measurement data acquisiton module µCAN.1.ti-BOX in protection class IP66 is designed for the acquisition of temperature sensor signals. The µCAN.1.ti-BOX may be installed near the temperature sensor. The signals of the sensor are evaluated within the µCAN.1.ti-BOX and the measured value is transmitted in °C via the CAN interface.
- Temperature measurement at 16 bit resolution
- Pt100 and thermo signals type J, K and L
- Wire break and short circuit detection
- Protocol: CANopen CiA 404
- Expanded ambient temperature range of -40°C .. +85°C
- Mechanic shock resistance of up to 40 G (optional)
- Vibrations resistance of 3 .. 800 Hz @ 4.5 Grms (optional
Connectivity
One measurement sensor may be connected to the module, the sensor type is selected via CAN bus. On selecting the type of sensor the cold junction compensation for thermocouples is activated automatically.
- Platinum temperature sensors (Pt100, Pt500, Pt1000)
- Thermocouples (type J, K, L, T)
Communications
The digitized temperature values of the µCAN.1-ti-BOX are transmitted via CAN bus. The bit rate of the CAN bus interface is adjustable within a range of 10 kBit/s to 1 MBit/s. A terminating resistor may be activated via a switch in the device where required. The CANopen protocol of the module complies with the CANopen Standard CiA 404. Both 11 bit identifiers (CAN 2.0A) and 29 bit identifiers (CAN 2.0B) may be used on the process data.
Ordering information
Order Number |
Description |
| 12.10.009 | µCAN.1.ti-BOX 1-channel thermal data acquisition module with CANopen, designed for metric cable glands, connection via screw terminals. |
| 12.10.021 | µCAN.1.ti-BOX 1-channel thermal data acquisition module with CANopen, J type thermo plug-in connector, CAN and power supply via Sub-D 9 poles. |
| 12.10.031 | µCAN.1.ti-BOX 1-channel thermal data acquisition module with CANopen, K type thermo plug-in connector, CAN and power supply via Sub-D 9 poles. |
| 20.10.008 | µCAN.open.ER Configuration tool for CANopen devices |
| 90.01.113 | Metric cable installation kit for 1-channel field modules. |
